Induction Motor

Electric Induction Motor Solutions by Leading Induction Motor Manufacturers

Induction Motor Manufacturer such as ZCL is renowned worldwide for their innovation and reliability in powering modern industry. As trusted Induction Motor Manufacturers, our expertise in designing and manufacturing Electric Induction Motors sets us apart in delivering high-performance, energy-efficient solutions.

Understanding Electric Induction Motor Technology

An Electric Induction Motor, also known as an asynchronous motor, operates on the principle of a rotating magnetic field produced by the stator. In this design, the rotor—typically constructed as a squirrel cage—rotates due to the interaction with the changing magnetic field. This method eliminates the need for brushes or commutator systems found in DC motors, ensuring lower maintenance and enhanced durability.

Features and Technical Specifications of ZCL Electric Induction Motor

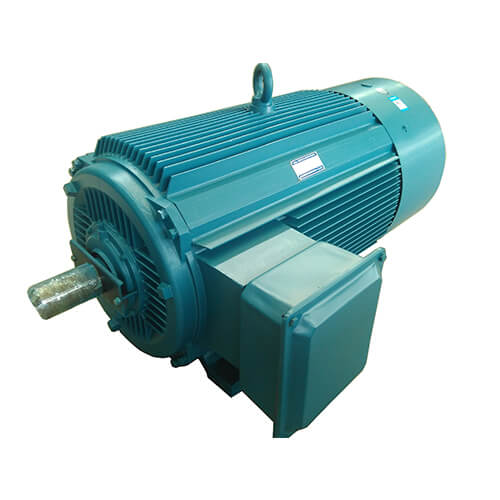

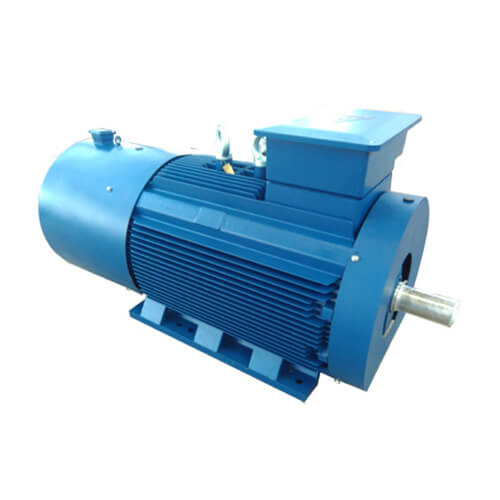

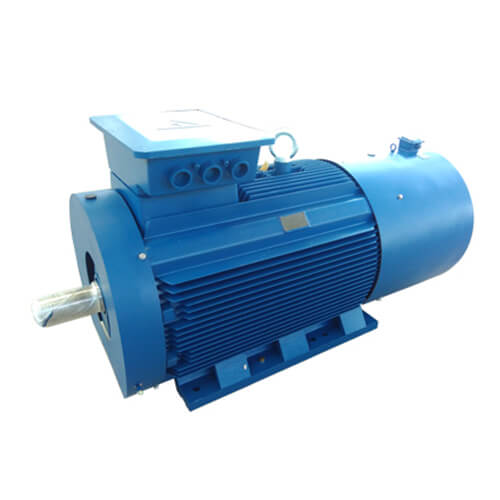

Our product range, developed by leading Induction Motor Manufacturers, includes the advanced Y2 series low-voltage high-power fully enclosed squirrel cage three-phase induction motor. These motors feature:

Features

• Y2 series low-voltage high-power fully enclosed squirrel cage three-phase induction motor is designed on the basis of Y2 series, using new materials, new technology and reliability technology.

• The external structure is the same as that of the Y2 series induction motor.

• The motor adopts Class F insulation, the protection grade is IP55, the rated voltage is 380V, the rated frequency is 50HZ, the installation type is horizontal installation (IMB3), the cooling mode is IC411.

• Y2 low voltage high power induction motor is small in size, light in weight and compact in structure. High efficiency, low noise, and meet the environmental requirements of customers.




Product Parameters

• Rate power: 132~900kW

• Frame size: 355~450

• Rate voltage: 380V, 660V

• Poles: 2~12 poles

• Protection degree:  IP55

• Insulation class: F

• Cooling method:  IC411

• Duty: S1

This robust construction meets the rigorous demands of industrial applications and is ideally suited for a variety of general-purpose machinery including pumps, fans, compressors, and transportation equipment.

Applications and Industrial Impact

Y2 low-voltage high-power induction motor is suitable for driving all kinds of general-purpose machinery, such as pumps, fans, compressors, transportation machinery, etc. It is also used as the prime mover in petrochemical and mining enterprises.

• Fuel Controls

• Missile Fin Actuation

• Trim & Stabilizer Controls

• Cabin Pressure Valves

• Fuel Control / Pumps & Valves

• Electric Brake System Components

• Environmental Control

• Robotic Actuation

• Winches & Hoists

Difference Between Dc Motor and Induction Motor

Understanding the Difference Between Dc Motor and Induction Motor is crucial. DC motors offer high starting torque and simple speed control through voltage adjustments, while induction motors provide robust, continuous operation with lower maintenance requirements due to the absence of brushes. This distinction makes induction motors preferable in heavy-duty industrial settings.

• Power source: DC motors use direct current, whereas induction motors use alternating current.

• Starting torque: DC motors generally have higher starting torque compared to induction motors.

• Speed control: The speed of a DC motor can be easily controlled by adjusting the voltage, while controlling an induction motor's speed is more complex and often requires changing the frequency of the power supply.

• Maintenance: Brushed DC motors usually require more maintenance due to the wear of brushes and commutators, whereas induction motors generally have lower maintenance needs.

• Applications: DC motors are often used in applications like robotics, electric vehicles, and power tools, where precise speed control and high starting torque are needed. In contrast, induction motors are widely used in industrial applications due to their robustness and reliability.

Customer Trust and Global Expertise

As prominent Induction Motor Manufacturers, our commitment to quality and customer satisfaction is unwavering. We invite you to explore our comprehensive range of Electric Induction Motors and experience the benefits of innovative engineering, meticulous design, and reliable performance. Our expert team is dedicated to offering tailored solutions and free quotations to meet your unique industrial needs.

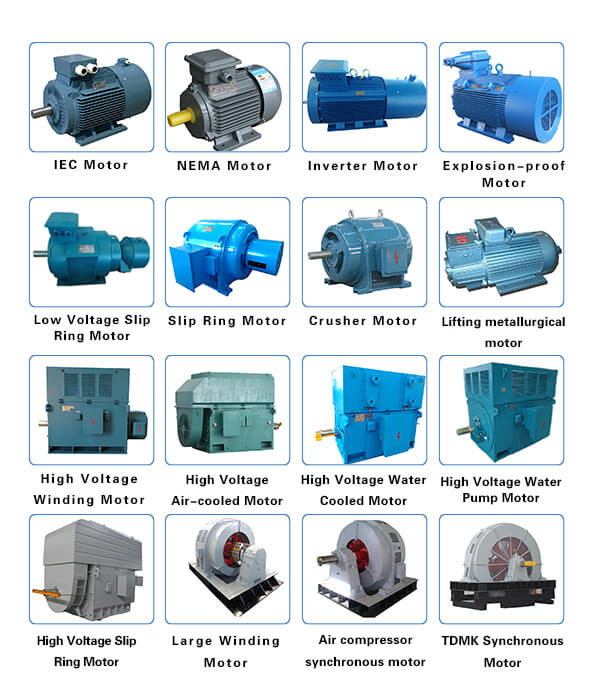

More Product

There are many types of motor products manufactured and sold by our company. The main products are high- and low-voltage three-phase asynchronous motors. The motor structure types include squirrel-cage type and winding type. Among them, high-voltage synchronous motors mainly support air compressors and mine ball mill equipment. use. We adhere to the service tenet of "focus on products, service with heart" and provide high-quality motor products to customers.

For those seeking top-tier Electric Induction Motor solutions, ZCL status as leading Induction Motor Manufacturers ensures that you receive products built with precision, efficiency, and safety in mind. Trust our experienced Induction Motor Manufacturers to power your operations with excellence—connect with us and join the ranks of satisfied clients who rely on premier Induction Motor Manufacturers.
