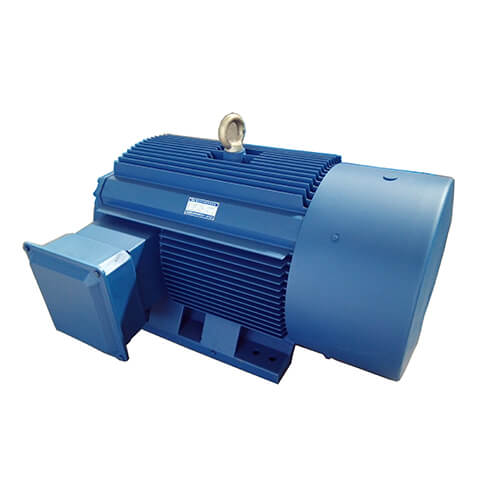

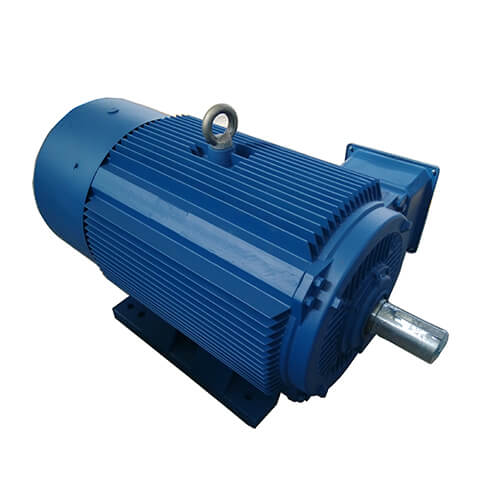

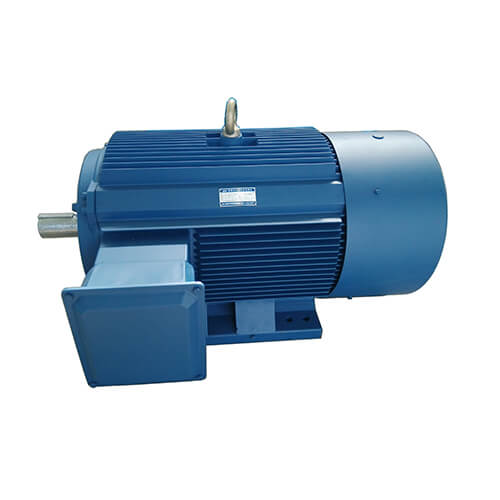

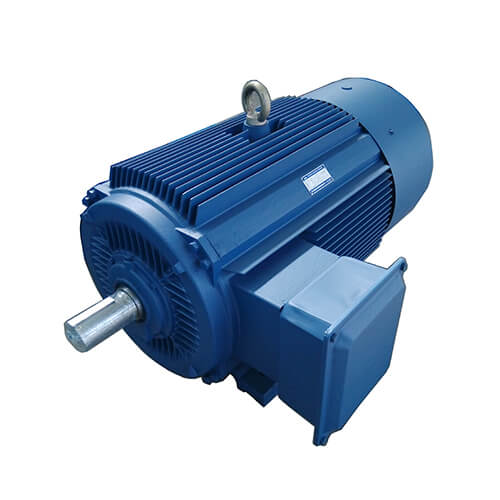

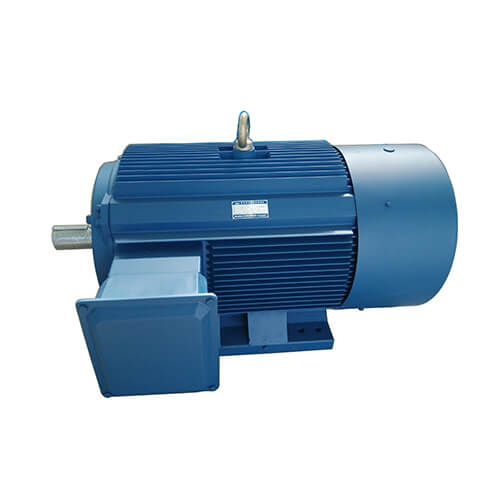

IE2 Motor

Brand: ZCL

Product Origin: China

Delivery Time: 3-60 days

Supply Capacity: 3000 per Month

Inquire Now Next Product

Product Description

IE2 motor is a general-purpose fully enclosed fan-cooled squirrel-cage three-phase asynchronous motor, and its efficiency reaches China GB18613-2012 Level 3 energy efficiency or IEC60034-30 standard level 2 energy efficiency. It has also obtained the “China Energy Conservation Product Certification” and the “China National Compulsory Product Certification (CCC)” issued by the China Quality Certification Center (CQC) and the “CE Certification” certificate issued by the EU Safety Certification Body. IE2 standard motor has a remarkable energy saving effect, high safety performance, good durability and stable and reliable operation.

IE2 series high-efficiency three-phase asynchronous motor meets the three-level efficiency standard stipulated in GB18613-2012 "Energy efficiency limit value and energy efficiency rating of small and medium-sized three-phase asynchronous motor". At the same time, it meets the IE2 energy efficiency rating of IEC60034-30-2008.

IE2 motor has the advantages of reasonable structure, beautiful appearance, high efficiency, low noise, high protection level and high insulation grade. It can be widely used in fans, pumps, machine tools, compressor transportation machinery, etc. to drive various general mechanical equipment, but also in petroleum, It is an ideal replacement for Y and Y2 series motors in chemical, mining and other places with relatively harsh environments.

IE2 Motor Parameters

Frame number range: 80-355

Power range: 0.75kW-355kW

Frequency: 50/60Hz

Number of levels: 2/4/6/8

Energy efficiency rating: IE2

Working system: S1

Protection level: IP55/IP56

Insulation class: F

Cooling method: IC411

Applications: pumps, reducers, compressors

Feature of IE2 Motor

■ Site conditions

The IE2 Industrial Motor can be used in most applications and environments. The standard operating conditions of the motor are -20 ° C to +40 ° C and an altitude of 1000m.

■ Temperature rise and insulation

The IE2 Industrial Motor is designed according to the Class F insulation (155 °C). According to the Class B insulation test (80K), the service life and reliability of the motor are guaranteed.

■ Cooling and ventilation

The standard cooling method is fully enclosed self-fan cooling (TEFC). The standard IE2 motor is equipped with a secondary flow plastic fan. Meets the requirements of IC411 in IEC60034-6.

■ Protection level

The IE2 Industrial Motor is IP55-rated for use in dusty or humid environments. Motors with a higher degree of protection are also available upon request.

■ Motor protection

According to the requirements, it can be used to measure the temperature and protection of windings and bearings such as PTC and PT100.

■ Voltage, frequency

The standard IE2 motor is 380V/50HZ. It can design a 50HZ motor with any voltage in the range of 200-660V. In the case where the supply voltage deviates from the rated voltage by ±5%, it still works well.

■ Junction box location

The junction box is a standard series motor above or to the right of the base.

Difference Between IE2, IE3, IE4, and IEC motors

Characteristic	IE2 Motor	IE3 Motor	IE4 Motor	IEC Motor
Efficiency	Standard Efficiency	High Efficiency	Super Premium Efficiency	Efficiency varies (based on design and model)
Energy Savings	Lower energy savings	Significant energy savings	Maximum energy savings	Varies depending on efficiency level
Power Range	Wide range	Wide range	Wide range	Wide range
Power Factor	Typically lower	Higher	High	Varies based on design
Starting Method	DOL (Direct On-Line)	DOL or VFD	Typically VFD (Variable Frequency Drive)	Varies (based on design)
Heat Generation	Moderate to high	Moderate	Low	Varies (based on design)
Noise Level	Moderate	Moderate	Low	Varies (based on design)
Maintenance	Regular maintenance required	Lower maintenance required	Lower maintenance required	Varies (based on design)
Cost	Economical	Moderate	Higher	Varies (based on efficiency level and design)
Regulatory Standards	Typically meets IE2 standards	Complies with IE3 standards	Exceeds IE4 standards	Meets IEC standards
Application	General-purpose applications	Broad range of applications	High-efficiency applications	Broad range of applications
Environmental Impact	Higher energy consumption	Energy-efficient, but not as much as IE4	Maximum energy savings	Varies depending on efficiency level

Note: The choice between these motor types should consider your specific application, energy efficiency goals, and budget constraints. Different applications may benefit from motors with varying efficiency levels and operating characteristics.

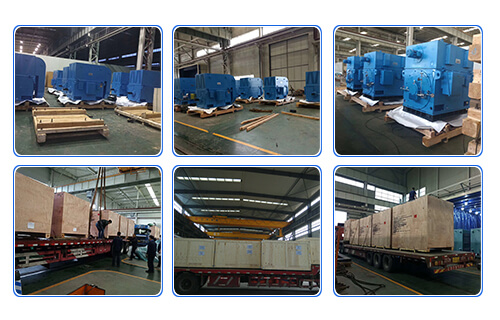

Packing and Shipping

1. The outer packaging of IE2 Motors is all standard export-oriented wooden plywood packaging.

2. IE2 Motor packaging is protected by moisture, water plastic soft packaging

3. For Motors with special transportation requirements (such as temperature, fragility, variability, and ease of getting wet), the packaging protection measures will be strengthened, and the target mark will be printed on the package.

4. There are obvious signs and symbols on the packing box that must be paid attention to during transportation and storage (such as position, moisture, rain, shockproof, lifting position, etc.).

About Us

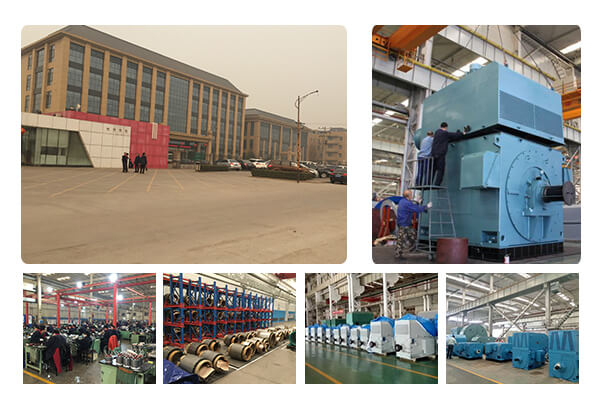

Shijiazhuang ZCL Electric Motor Technology Co., Ltd. is a company mainly engaged in the manufacture, research and development and sales of motor products. The company has many types of motor products, including IEC standard motors. It is a professional IEC motor manufacturer. Related motor products have passed the product certification in China, the United States, Canada, Europe, the Middle East and other regions, and the products are exported to all over the world. Companies adhere to the "focus on products, service" business philosophy, is committed to improving the quality of safe motor products and services for customers around the world.
