Brand: ZCL
Product Origin: China
Delivery Time: 50-90 days
Supply Capacity: 100 units/month

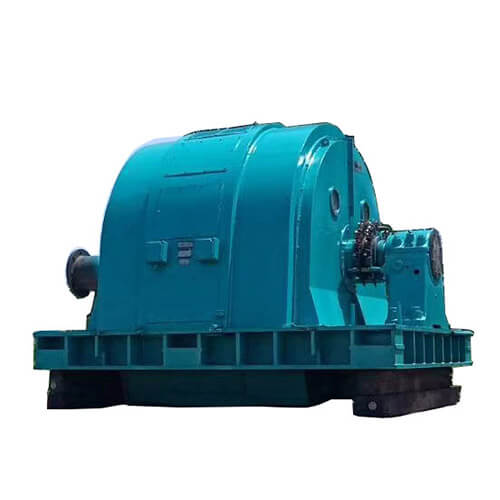

The T Series 4 and 6 pole high speed synchronous motors are horizontal. The cooling method is open from fan-cooled, ducted or semi-pipe ventilated, closed self-circulating ventilation. The T-series motor can be made with one end shaft extension or a shaft extension at both ends. The direction of rotation is counterclockwise as seen from the end of the collector ring. The direction of rotation of the motor can be changed as needed, but the blades of the motor should be changed accordingly.
4 and 6 pole high speed synchronous motors:
Base: welded with steel plate into a whole structure, the base and the bearing seat are respectively fixed on the bottom plate welded by the steel plate.
The stator core is formed by laminating silicon steel sheets of 0.5 mm, and the stator core is fixed on the frame by a tensioning screw.
Stator coil: The coil is a stack winding, which is insulated by F pole and has anti-corona measures. The ends of the coils are securely fastened and treated with an integral VPI vacuum dipping finish.
Magnetic pole: a magnetic pole punch punched from a thin steel plate is laminated, and a magnetic pole core jacket is a magnetic pole coil. The entire magnetic pole is mounted on the yoke.
Magnetic pole coil: It is made of copper flat wire and is insulated by Class F insulation.
The optimized wind, magnetic circuit and circuit design of the T series high-speed synchronous motor make the motor have good electrical performance, low electromagnetic noise and superior energy efficiency.
The T series 4 and 6 pole high speed synchronous motors are designed with 3D software, and the ANSYS analysis software is used to analyze the electromagnetic field, structure field and temperature field by finite element method to ensure the high reliability of the motor. This model uses a solid magnetic pole structure that can be used in steel mills to drive large inertia loads such as sintering machines and fans. The motor starting mode adopts a soft start, and the starting scheme is determined according to the resistance torque and the moment of inertia of the load.
T Series 4 and 6 pole high speed synchronous motors are suitable for drive ventilators, pumps, motor generator sets and other general purpose machines. The rated voltage of this series of synchronous motors is 6000V/10000V, the rated frequency is 50HZ, and the rated power factor is 0.9 (leading). This series of motors has high operating efficiency, sophisticated materials, excellent manufacturing, stable performance, and the speed does not change with load changes.
The technical requirements of this series of motors, except those specified in the special technical conditions of the products, are in compliance with the IEC standards. The mechanical dimensions of each part of the motor are in accordance with the Chinese national standard GB1800-1804 and the ISO standard of the International Standardization Committee.
The protection level of this series of motor housings is IP00, IP20, IP21, IP23 and IP44 according to GB4942.1 and IEC34-5 "Motor enclosure protection level".
T series 4 and 6 pole synchronous motor cooling methods According to GB1993 and IEC34-6 "Motor Cooling Method" standards, there are IC01, IC27, IC37, IC81W, IC91W. The basic installation method of the motor complies with the provisions of GB997 and IEC34-7 "Motor Structure and Installation Type Code". If the user needs other protection levels, cooling methods, and installation methods, they can be negotiated separately.
The T series large-scale three-phase four-pole and six-stage synchronous motor has a constant rating; the structural type is horizontal; the ventilation mode is open type, pipeline ventilation and forced circulation forced air. This series of high speed synchronous motors are used to drive blowers, compressors, pumps, rolling mills and other general purpose machines. The direction of rotation of the motor is clockwise from the end of the shaft. The motor allows direct starting at full pressure. The motor is a single shaft extension, box structure, horizontal installation, end cover rolling bearing. The motor housing protection type is heavy straight anti-drip type, and can also be other forms. According to user requirements, the ventilation form of the motor can be ventilated or reversed (wind inlet).
T series 4 and 6 pole high speed synchronous motors:
Bearing: It is composed of cast iron bearing housing and bearing bush with bearing alloy. The lubrication method is compound lubrication of oil ring self-lubricating or external oil system.

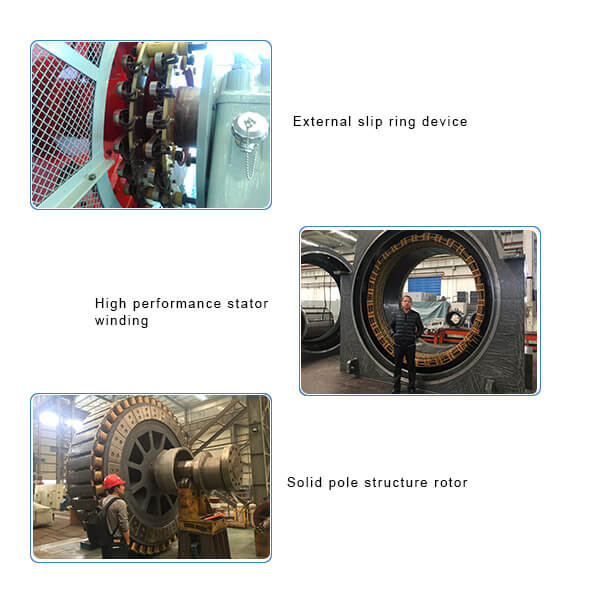

Brush and collector ring: The slip ring is a fabricated structure. The brush is mounted in a constant pressure brush box and connected by a conductive plate, and the entire brush holder is fixed to the side of the bearing.
Excitation mode: This series of motor excitation system uses thyristor excitation device.
Product Parameters

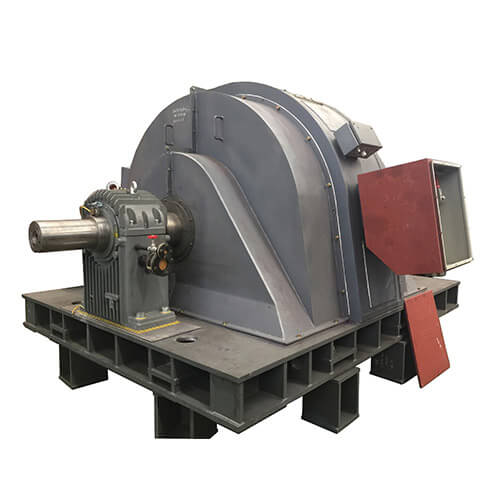

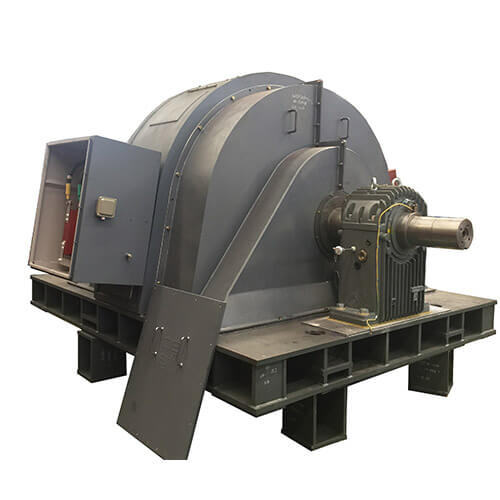

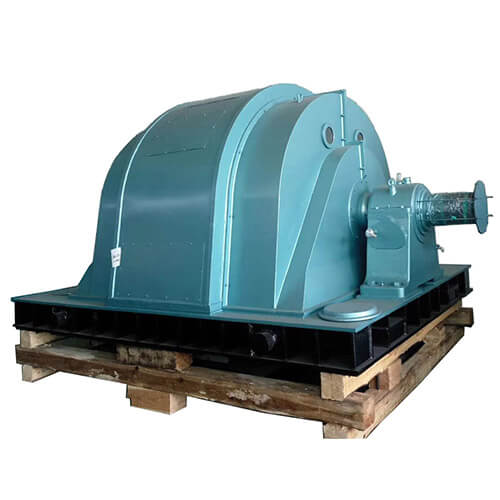

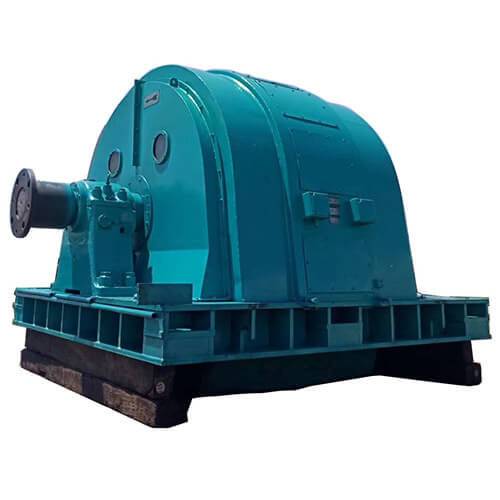

Product Name: T series 4 and 6 pole high speed synchronous motor
Rated voltage: 3000V, 6000V, 10000V
Capacity range: 500 kW ~ 6300kW
Rated frequency: 50Hz, 60HZ
Cooling method: IC01, IC27, IC37, IC81W, IC91W
Quota: S1
Synchronous speed: 1500, 1000r/min
Insulation class: Class F
Temperature rise level: B
Connection: Y
Protection level: IP00/IP21/IP23/IP44
Power factor: 0.9 (leading)
Excitation mode: static thyristor (other excitation methods can also be made)
The guaranteed value of the ratio of out-of-step torque to rated torque at rated voltage is 1.7
The guaranteed value of the ratio of locked rotor torque to rated torque at rated voltage is 1.0.
The guaranteed value of the ratio of the torque to the rated torque at the rated voltage is 0.7.
The guaranteed value of the ratio of locked current to rated current at rated voltage is 7.0.
Feature of Product
T series 4 and 6 pole synchronous motors have large moment of inertia characteristics and are widely used in petroleum. Chemical, electric power and other industries are used to drive loads with large moments of inertia such as fans, pumps and compressors. This series of motors adopts new technology, new materials, new technology, colorful and exquisite, well-made, specific small size, light weight, high efficiency, low noise, low vibration, safe and reliable operation, convenient use and maintenance.
Packing and Shipping
1. The outer packaging of the products are all standard export-oriented wooden plywood packaging.
2. The product packaging is protected by moisture, water plastic soft packaging
3. For products with special transportation requirements (such as temperature, fragile, variability, and easy to get wet), the packaging protection measures will be strengthened, and the target mark will be printed on the package.
4. There are obvious signs and symbols on the packing box that must be paid attention to during transportation and storage (such as position, moisture, rain, shockproof, lifting position, etc.).

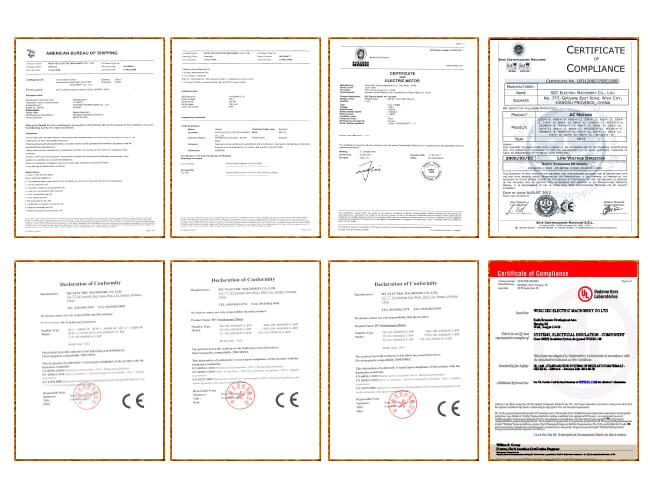

Certifications
The motor products manufactured by our company have obtained the ISO9001 quality management management system certification, passed the CCC/COC, China energy-saving product certification, and passed the certification certificates of CE/UL/IRIS/CAS and other European and American countries. The company strictly improves the quality and efficient motor products and services for users in strict accordance with the requirements of relevant product standards.

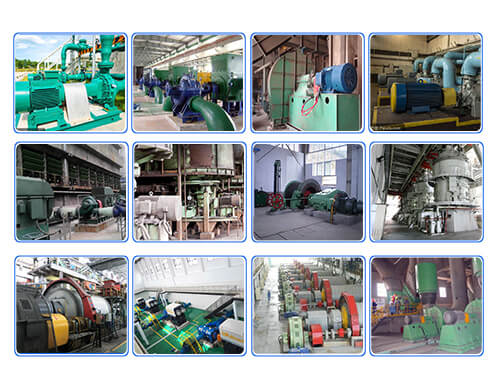

Product Use
The motor products manufactured and sold by our company are used in many industries, such as electric power, mining, steel metallurgy, petrochemical, water conservancy, transportation, building materials and many other industries. The equipment for the motor is pump, machine tool, fan, mill, crusher, rolling mill, compressor and many other industrial equipment.
About Us

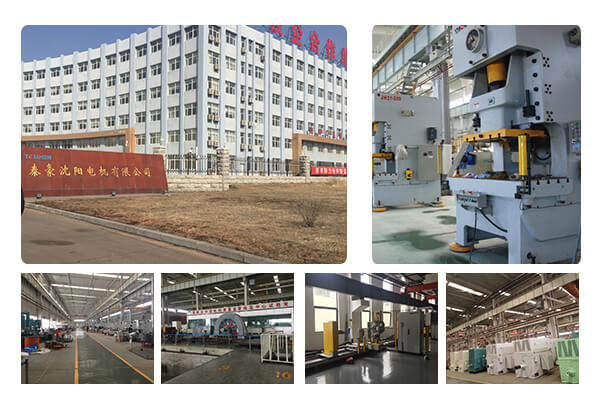

Shijiazhuang ZCL Electric Motor Technology Co., Ltd. is a company mainly engaged in the manufacture, research and development and sales of motor products. The company has many types of motor products, including IEC standard motors. It is a professional IEC motor manufacturer. Related motor products have passed the product certification in China, the United States, Canada, Europe, the Middle East and other regions, and the products are exported to all over the world. Companies adhere to the "focus on products, service" business philosophy, is committed to improving the quality of safe motor products and services for customers around the world.
