When running in unsafe areas, making use of explosion-proof electric motors is essential to the safety and security of your workers and also tools. Explosion-proof motors are made for usage in unsafe environments where flammable gases, dust or fibers exist. Motors generate heat under typical operating problems as well as if a motor coil falls short, a spark may be generated that can create an explosion or ignite a fire.
Motors in Class I settings (UL classification) where combustible gases, vapors or liquids are present are designed to avoid inner triggers or flames from escaping from the electric motor into the hazardous environment. They are also developed to ensure that the motor room temperature does not exceed the secure temperature for settings where gases, vapors, or liquids exist.
Other methods are used for various other tools operating in these settings, some of which can also be utilized for electric motors, consisting of purging or pressurization, added explosion-proof enclosures, encapsulation, and even fluid-filled styles. Despite the technology utilized, the goal is to prevent the motor from firing up a flammable source under normal operating problems or in the event of a motor failing.
Explosion-proof styles have internal burning to prevent a bigger surge or fire when a trigger stirs up unstable gases inside the motor. An explosion-proof motor is clearly noted with a nameplate showing its suitability for the provided unsafe environment.
Depending on the electric motor certification body, the nameplate plainly shows the hazardous place course, category as well as team for which the electric motor appropriates. Agencies that can license electric motors for harmful job are UL (United States), ATEX (EU) and CCC (China).
These agencies classify dangerous settings into:
groups - which specify the feasible risks in the environment;
divisions - which identify the probability of the existence of threats under typical operating conditions;
and also teams - which determine the specific materials existing.

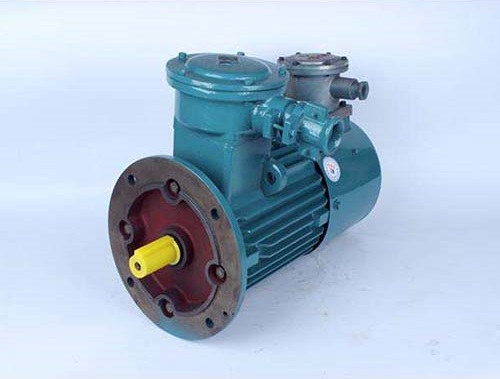

The explosion-proof performance of this series of motors complies with GB3836.1-2000 "Electrical Equipment for Explosive Gas Environments Part 1: General Requirements" and GB3836.2-2000 "Electrical Equipment for Explosive Gas Environments Part 2: Explosion-proof Type "d"" The regulations are also compliant with the provisions of IEC79-1, BS4683 and EN50018 to create an explosion-proof type.
Please follow ZCL's website to see more info.
The European Union has similar qualification needs that separate the atmosphere right into numerous zones. areas 0, 1 and 2 are designated for gases as well as vapors, while zones 20, 21 and also 22 are designated for dirt and fibers. The zone numbers designate the likelihood of the product being present during typical procedure, with areas 0 and also 20 being extremely high, 1 and also 21 being high and typical, as well as 2 and also 22 being reduced.
As of October 2020, China calls for CCC accreditation for motors operating in dangerous environments. To obtain qualification, products are tested by a certified testing center according to certain needs defined by the Chinese government.
It is very important to examine the electric motor nameplate for specific requirements, hazards existing and various other environmental aspects to establish the viability of an explosion-proof electric motor. The explosion-proof noting indicates the type of risk appropriate for that certain electric motor. Making use of an explosion-proof motor in a harmful atmosphere where the score is not defined can be dangerous.
